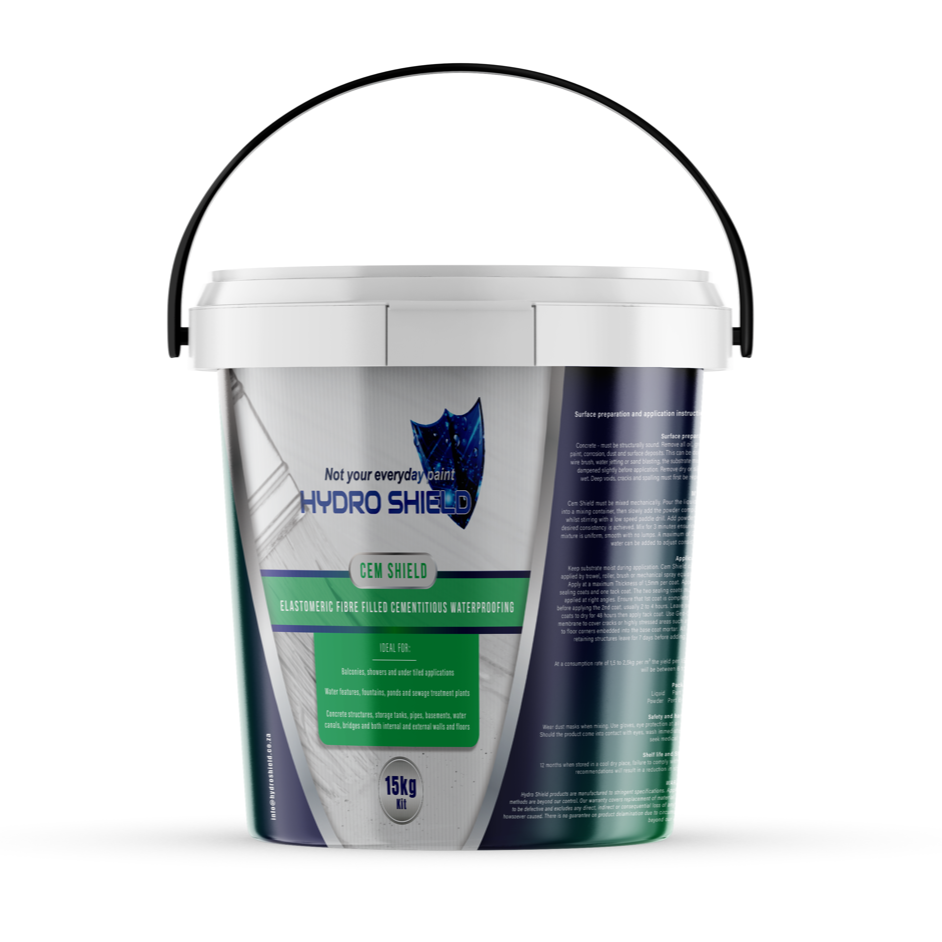

Cem Shield is a 2 component elastomeric waterproof and moisture barrier coating with added fibre.
Cem Shield is highly elastic with exceptional adhesion properties that can be used to waterproof;
▪ Concrete structures, storage tanks, pipes, basements, water canals, bridges and both internal and external walls and floors against hydrostatic pressures
▪ Moisture barrier for concrete coatings
▪ Balconies, showers and under tiled applications
▪ Water features, fountains, swimming pools, ponds and sewage treatment plants
▪ Protection of new and old exposed concrete against carbonation, chloride and sulphate attack
▪ Hassle free and easily applied by brush, roller, trowelled or by mechanical method
▪ Highly flexible with crack bridging capabilities
▪ Excellent adhesion to most masonry substrates
▪ Non- toxic to water plants and fish
▪ Can be used with or with-out membranes
Concrete- must be structurally sound. Remove all oil, grease, paint, corrosion, dust and surface deposits. This can be done by wire brush, water jetting or sand blasting, the substrate must be dry or slightly wet. Deep voids, cracks and spalling must first be repaired. Consult with your local representative about our range of repair mortars.
Do not apply if surface temperatures is below 9ºC Avoid excessive heat 35ºC and higher Relative air humidity of <75% RH Protect freshly placed coating against direct sunlight, heavy winds and rain for 24hours Cem Shield will cure slower in humid conditions
Approximately 45minutes at 25 ºC
Liquid- acrylic polymer dispersion in Powder- cement aggregates, fibre and additives
Tensile strength 4.35Mpa
Flexural strength 10.6Mpa
Compressive Strength <32Mpa at 28 days
Bond strength 1Mpa at 23C°/50%RH
Water permeability at 48 hours Nil
Cem Shield must be mixed mechanically. Pour the liquid part into a mixing container, then slowly add the powder component whilst stirring with a low speed paddle drill. Add powder until desired consistency is achieved. Mix for 3 minutes ensuring the mixture is uniform, smooth with no lumps. A maximum of 200ml water can be added to adjust the consistency.
Keep substrate moist during application. Cem Shield can be applied by trowel, roller, brush or mechanical spray equipment. Apply at a maximum Thickness of 1,5mm per coat.
Apply 2 x sealing coats and one tack coat The two sealing coats must be applied at right angle. Ensure that 1st coat is completely dry before applying the 2 nd coat, usually 2 to 4 hours. Leave sealing coats to dry for 48 hours then apply tack coat. Use membrane to cover cracks or highly stressed areas embedded into the base coat mortar. All water retaining structures leave for 7 days before adding water
At a consumption rate of 1,5 to 2,5kg per m² the yield per 15kg kit will be between 6 to 10m²
Liquid Part A 5lt
Powder Part B 10kg
SAFETY & HANDLING
Wear dust masks when mixing. Use gloves, eye protection at all times. Should the product come into contact with eyes, wash immediately and seek medical advice.
SHELF LIFE & STORAGE
12 months when stored in a cool dry place, failure to comply with these recommendations will result in a reduction in shelf life.
The information and specifications provided is to the best of our knowledge. The technical data contained herein are true and accurate at the date of issue and are subject to change without prior notice. No guarantee of accuracy is given or implied. We guarantee our products to conform to our quality control. We cannot be held responsible or liable, directly, or indirectly for the use of our products, coverage, performance, or injury resulting from its use, as we have no control over the method of application used or site conditions
